An acoustic camera is a device that visualizes sound sources in real time. Instead of only allowing users to hear a sound or read a numerical value, an acoustic camera shows where the sound is coming from by overlaying an acoustic heatmap on a live optical image.
In simple terms, an acoustic camera helps engineers “see” sound.
This makes it especially useful for industrial inspection, where many faults are invisible to the human eye. A small gas leak, an early partial discharge signal, or an abnormal mechanical noise may be difficult to locate by hearing alone. With acoustic imaging, these hidden risks can be displayed directly on the camera screen, helping maintenance teams find the source faster and take action earlier.
Acoustic cameras are widely used for gas leak detection, compressed air leak detection, partial discharge inspection, corona detection, mechanical fault diagnosis, and predictive maintenance.

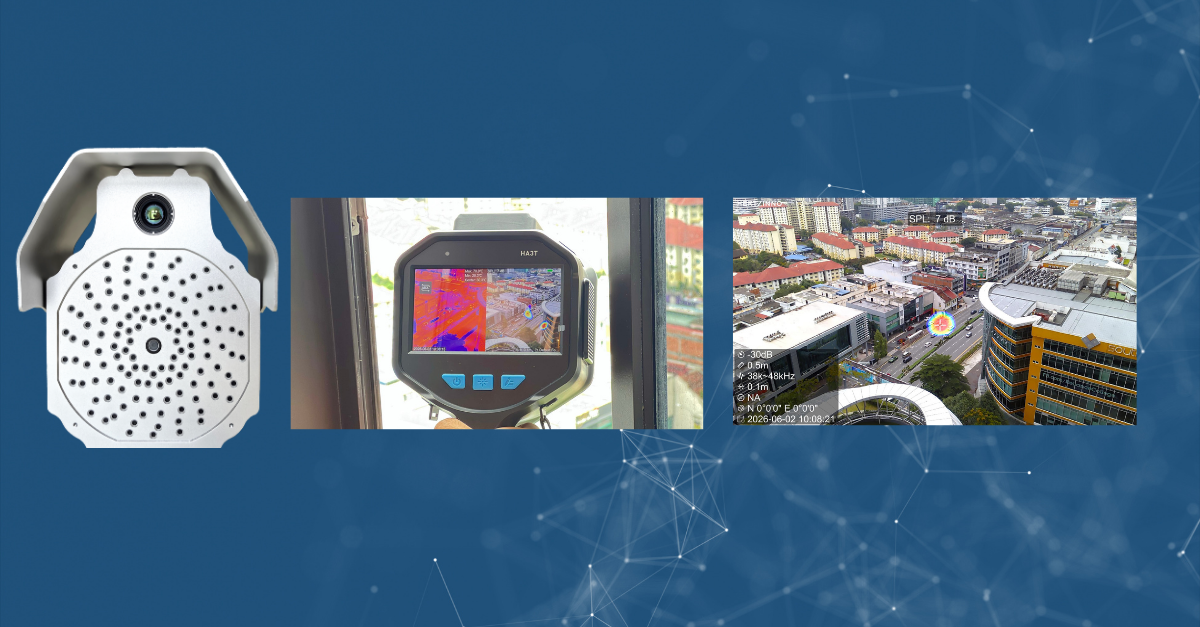

An acoustic camera usually combines three key parts: a microphone array, an optical camera, and acoustic imaging part.
The microphone array captures sound signals from the environment. When a sound wave travels from a source to the camera, it reaches each microphone at a slightly different time and phase. The acoustic camera analyzes these differences to calculate the direction and position of the sound source.
The optical camera captures the real scene in front of the user. The software then combines the acoustic data with the visual image and displays the sound source as a color map, often called an acoustic heatmap.
This heatmap allows users to identify the location and relative intensity of the sound source. A stronger signal usually appears as a brighter or more concentrated area on the image, helping the operator quickly understand where the problem is located.
In many modern acoustic cameras, beamforming and advanced signal processing algorithms are used to improve sound source localization. These algorithms help the device focus on specific directions, frequencies, or target signals, making the acoustic image clearer and more useful in complex industrial environments.
Many industrial problems generate sound before they become visible failures.
For example, a compressed air leak may produce ultrasonic noise, but the leak itself may be too small to see. Partial discharge in electrical equipment may emit ultrasonic signals long before a serious insulation failure occurs. A bearing, motor, pump, or valve may produce abnormal acoustic patterns before a breakdown becomes obvious.
Traditional inspection methods often depend on manual listening, point-by-point ultrasonic scanning, or experience-based judgment. These methods can be time-consuming, subjective, and difficult to document.
An acoustic camera improves this process by providing visual evidence. Instead of searching blindly, the engineer can scan a wide area and immediately see where the sound source is located. This helps reduce inspection time, improve fault localization, and support more confident maintenance decisions.
An acoustic camera and a traditional ultrasonic detector can both be used to detect sound-related faults, but the user experience is very different.
A traditional ultrasonic detector usually provides audio feedback or a numerical signal level. The inspector often needs to move the probe point by point and judge the source location based on signal strength. This can work well in some cases, but it may be slow when the testing area is large or when there are multiple possible sound sources.
An acoustic camera uses a microphone array to capture sound from many directions at once. It then displays the result visually, allowing users to locate the sound source more intuitively.
For industrial teams, the key advantage is not only detection, but visualization. An acoustic camera can show the sound source directly on a screen, making it easier to communicate findings, record inspection evidence, and explain problems to maintenance teams or decision-makers.

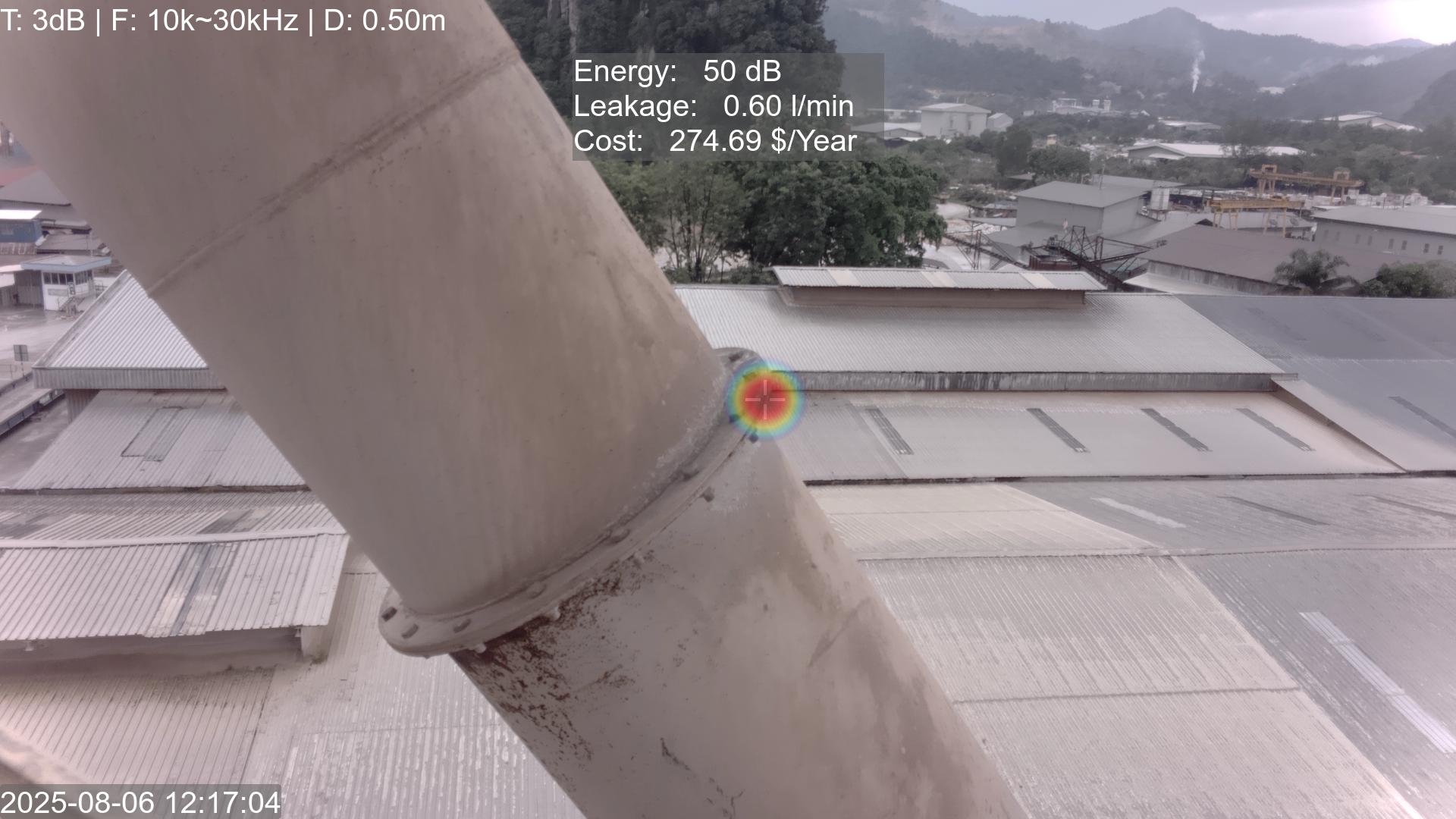

Gas leaks often generate high-frequency or ultrasonic signals when pressurized gas escapes through a small opening. An acoustic camera can detect these sound emissions and display the leak location on the screen.
This is useful for compressed air systems, gas pipelines, valves, flanges, pressure vessels, and industrial facilities where leaks can lead to energy loss, safety risks, or environmental concerns.
For maintenance teams, acoustic imaging can make leak detection faster and more efficient. Instead of checking each possible leak point manually, users can scan a broader area and visually identify the source.
Compressed air is widely used in manufacturing plants, but leaks can waste energy and increase operating costs. Many compressed air leaks are difficult to hear in noisy factories, especially when they occur in overhead pipes, hidden joints, or complex equipment areas.
An acoustic camera can help locate compressed air leaks by visualizing ultrasonic leak noise. This allows facility teams to identify leakage points, prioritize repairs, and reduce unnecessary energy consumption.

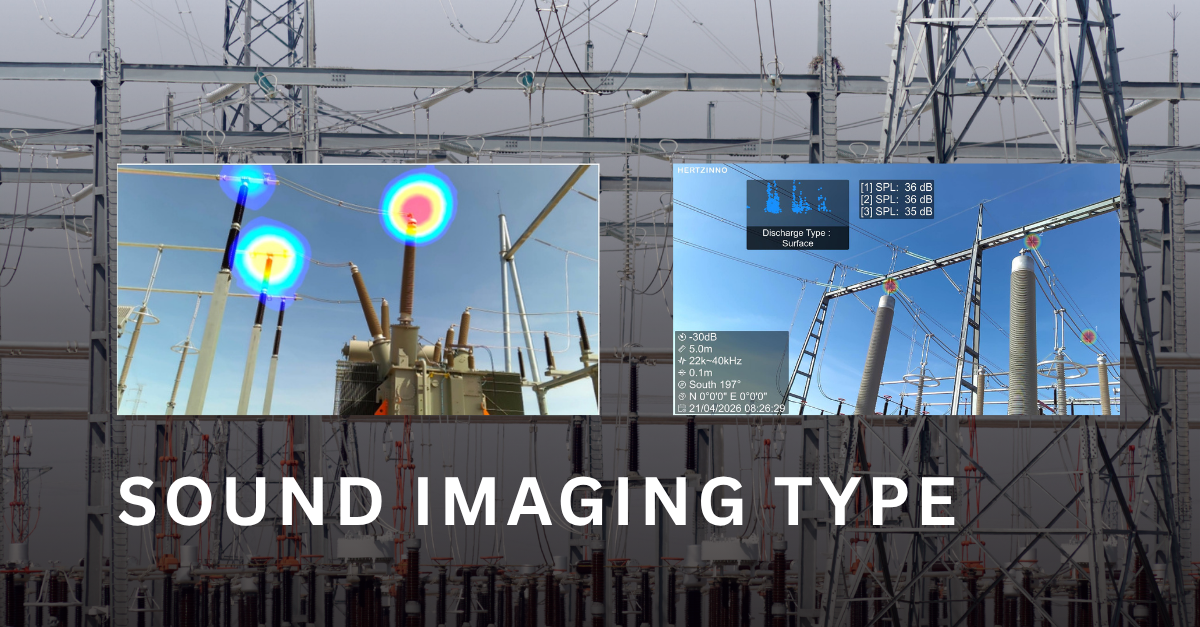

Partial discharge is a localized electrical discharge that can occur in high-voltage insulation systems. It may appear in substations, switchgear, transformers, cable terminals, and other electrical assets.

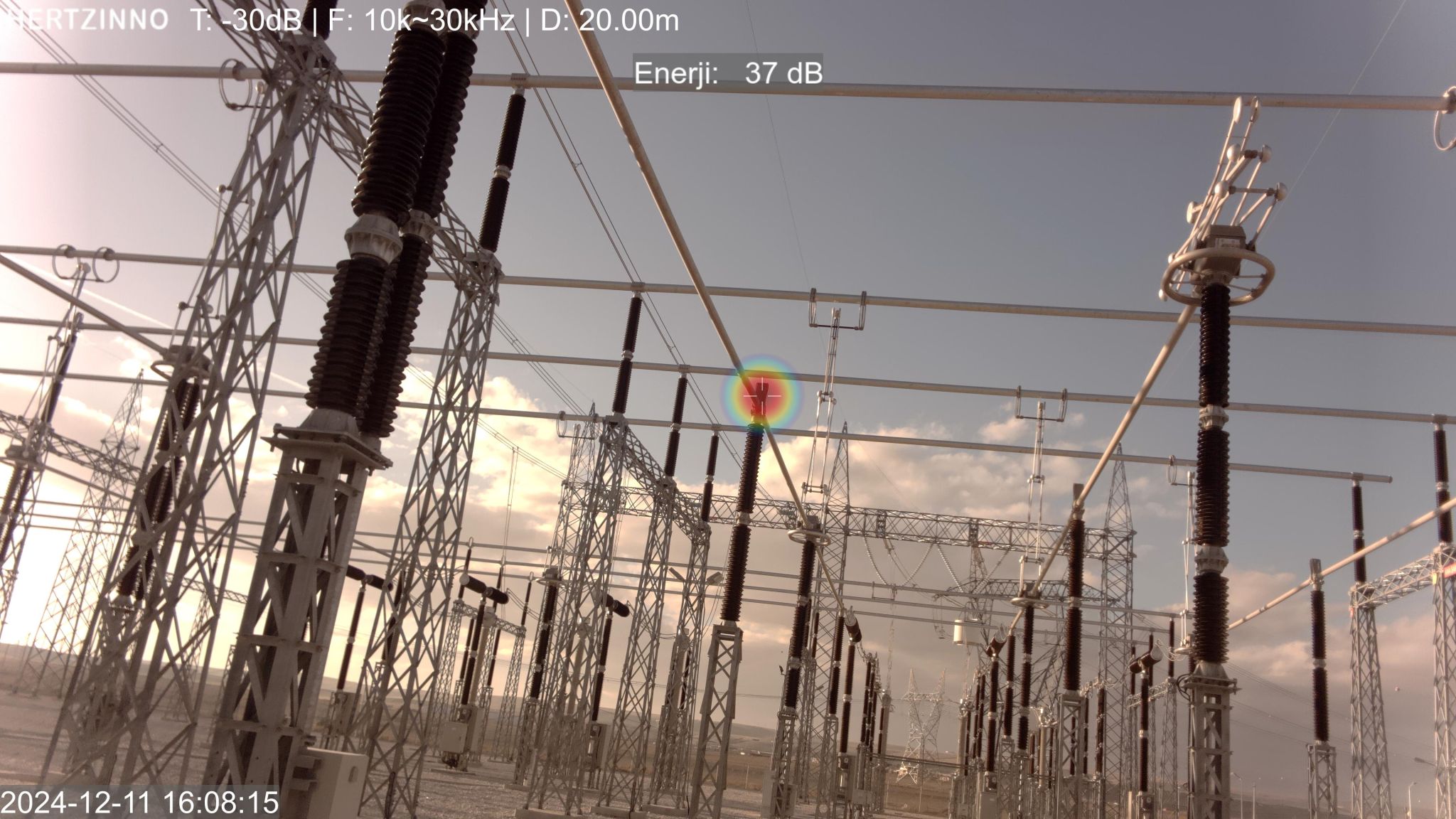

Because partial discharge can produce ultrasonic signals, acoustic cameras are useful for locating discharge sources from a safe distance. By visualizing discharge-related sound, engineers can identify problem areas without relying only on manual listening or contact-based inspection.
This makes acoustic imaging valuable for power utilities, electrical maintenance teams, and high-voltage asset management.
Motors, pumps, bearings, fans, valves, gearboxes, and rotating equipment often generate abnormal sounds when operating conditions change. These sounds may indicate friction, vibration, looseness, leakage, imbalance, or early-stage wear.
An acoustic camera can help maintenance teams identify abnormal sound sources and compare them with the visible equipment structure. This supports predictive maintenance and helps reduce unplanned downtime.
In factories and industrial facilities, noise can come from many different machines at the same time. Acoustic cameras help users identify which equipment or component is generating the dominant noise source.
This is useful for noise control, equipment troubleshooting, and workplace environment improvement.
An acoustic heatmap is the visual representation of sound energy on the camera display. It is usually shown as a colored overlay on top of the optical image.
The heatmap helps users quickly understand where the sound source is located and how strong it is relative to the surrounding environment. In many cases, the center of the heatmap indicates the most likely sound source position.
Different acoustic cameras may use different color scales, frequency filters, dynamic range settings, and display modes. The purpose is the same: to make invisible sound easier to locate, understand, and document.
The frequency range depends on the acoustic camera model and application. Some cameras focus on audible sound, while industrial acoustic cameras often cover ultrasonic frequencies as well.
Ultrasonic detection is especially important for gas leaks, compressed air leaks, and partial discharge inspection because these faults often generate sound energy above the normal hearing range of humans.
When choosing an acoustic camera, users should consider the target application, expected frequency range, inspection distance, environmental noise, and required sensitivity.
Acoustic cameras can be handheld or fixed, depending on the inspection workflow.
A handheld acoustic camera is suitable for mobile inspection. Engineers can carry it around substations, factories, plants, data centers, compressor rooms, and other industrial sites. It is flexible and useful for routine inspection, troubleshooting, and maintenance verification.
A fixed acoustic camera is designed for continuous monitoring. It can be installed in key areas where manual inspection is difficult, risky, or not frequent enough. Fixed acoustic monitoring is useful for unmanned substations, compressor stations, electrical rooms, utility areas, and critical industrial sites.
In many facilities, handheld and fixed acoustic cameras can work together. Handheld devices support periodic inspection and on-site troubleshooting, while fixed systems provide long-term monitoring of high-risk areas.
Choosing the right acoustic camera depends on the application.
For partial discharge detection, users should focus on ultrasonic sensitivity, frequency range, localization accuracy, inspection distance, and the ability to work in electrical environments.
For gas leak detection, users should consider ultrasonic leak detection capability, field usability, distance range, and whether gas concentration verification is required.
For mechanical fault diagnosis, users should look at frequency analysis, sound source localization, recording capability, and ease of use in noisy industrial environments.
For continuous monitoring, users should consider fixed installation, remote access, alarm functions, integration capability, and environmental protection.
The best acoustic camera is not only the one with strong hardware specifications, but also the one that fits the real inspection workflow.
An acoustic camera can bring several practical benefits to industrial inspection teams.
First, it improves inspection efficiency. Users can scan a large area quickly and identify the sound source visually.
Second, it improves fault localization. Instead of only knowing that a signal exists, users can see where it is coming from.
Third, it improves documentation. Acoustic images and videos can be used as visual evidence for maintenance reports, asset records, and repair verification.
Fourth, it supports safer inspection. In power utilities and hazardous industrial environments, acoustic cameras can help users detect problems from a safer distance.
Finally, it supports predictive maintenance. By detecting early acoustic signals, teams can identify problems before they become costly failures.
Industrial maintenance is moving from reactive repair to predictive maintenance. Instead of waiting for equipment to fail, companies want to detect risks earlier, reduce downtime, and improve asset reliability.
Acoustic imaging supports this shift by making hidden sound sources visible. It helps teams find leaks, discharge, abnormal noise, and early-stage equipment problems more efficiently.
For power grids, this can support safer high-voltage asset inspection. For oil and gas facilities, it can support leak localization and emissions management. For factories, it can help reduce compressed air waste and identify mechanical issues. For data centers and electrical rooms, it can support early warning of electrical and thermal risks when combined with other inspection technologies.
HERTZINNO develops acoustic imaging solutions for industrial inspection and online monitoring. HERTZINNO acoustic cameras are designed to help engineers visualize sound sources, locate faults, and improve inspection efficiency in real-world environments.
Depending on the model, HERTZINNO acoustic cameras can support applications such as gas leak detection, compressed air leak detection, partial discharge inspection, mechanical fault diagnosis, methane leak verification, thermal anomaly inspection, and fixed online acoustic monitoring.
For field engineers, the value of an acoustic camera is simple: it turns invisible sound into visible inspection evidence.
Whether the task is finding a gas leak in an industrial plant, locating partial discharge in a substation, checking abnormal noise from rotating machinery, or monitoring a critical area continuously, acoustic imaging can make the inspection process faster, clearer, and more reliable.
An acoustic camera is a powerful inspection tool that makes sound visible. By combining microphone arrays, acoustic algorithms, and optical image overlay, it helps engineers locate hidden sound sources and turn complex acoustic signals into easy-to-understand visual information.
For industrial users, acoustic cameras are especially useful for gas leak detection, compressed air leak detection, partial discharge inspection, corona detection, mechanical fault diagnosis, and predictive maintenance.
As industrial sites become more complex and maintenance teams need faster, safer, and more reliable inspection methods, acoustic imaging is becoming an important part of modern condition monitoring.
If you are looking for an acoustic camera for industrial inspection, partial discharge detection, gas leak localization, or fixed acoustic monitoring, HERTZINNO provides acoustic imaging solutions designed for practical field applications.
